Our Fast Start-up Touch Screen Interface Nitrogen Production Unit is designed to deliver high-purity nitrogen (up to 99.999%) with rapid commissioning and user-friendly operation. Utilizing advanced Pressure Swing Adsorption (PSA) technology, it efficiently separates nitrogen from compressed air to ensure stable flow and pressure for industrial applications. The fast start-up capability enables quick system activation, reducing downtime and improving production efficiency. Equipped with an intuitive touch-screen interface, it allows real-time monitoring, parameter adjustment, and system diagnostics with ease. Fully automatic, energy-efficient, and low-maintenance, this nitrogen production unit provides a reliable, cost-effective on-site solution for electronics, chemical, food, and manufacturing industries.

|

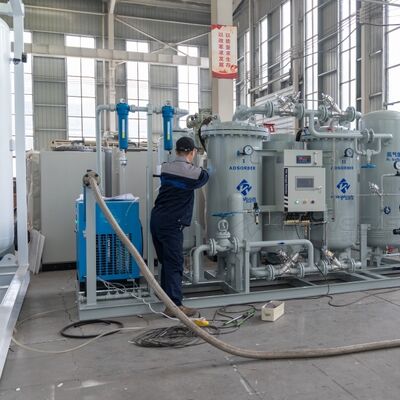

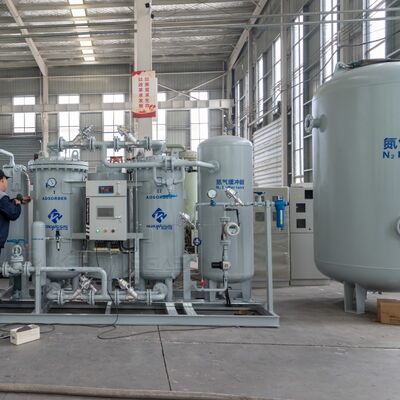

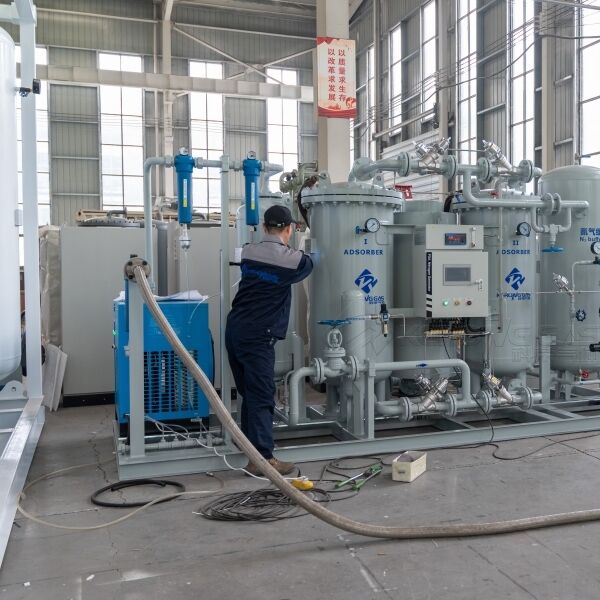

Fast Start-up Touch Screen Interface Nitrogen Production Unit
Dettagli:
| Luogo di origine: | Cina |
| Marca: | KERONG GAS |
| Certificazione: | ISO9001, ISO13485, ISO14001, ISO45001, CE, ASME |
| Numero di modello: | KRN, KRNA, KRNAB |
Termini di pagamento e spedizione:
| Quantità di ordine minimo: | 1 pz |
|---|---|
| Prezzo: | negotiable |
| Imballaggi particolari: | scatola di legno |
| Tempi di consegna: | 8 settimane |
| Termini di pagamento: | T/T, Unione Occidentale |
| Capacità di alimentazione: | 1000pcs all'anno |
|
Informazioni dettagliate |
|||
| Nome: | unità di produzione di azoto | Purezza: | 90%~ 99,9999% |
|---|---|---|---|
| Punto di rugiada: | -45 ℃ o più | Materiale: | Acciaio inossidabile o acciaio al carbonio |
| Capacità: | 5nm3/hr ~ 5500nm3/hr | Pressione: | 6bar o regolabile |
| Evidenziare: | PSA nitrogen generator touch screen,fast start-up nitrogen production unit,industrial nitrogen gas generator |
||
Descrizione di prodotto
Fast Start-up Touch Screen Interface Nitrogen Production Unit
Product description
Technical Parameters
Capacity: 5-5500Nm³/h
Dew point :-45 ℃ or more
Purity :90%~99.9997%
| Model | Nitrogen flow rate(Nm3/hr) | Purity(%) | Air need(m3/min) | Net dimensions(mm) |
| KRN159 | 7 | 99 | 0.33 | 1200*600*1900 |
| 6 | 99.5 | 0.32 | ||
| 5 | 99.9 | 0.32 | ||
| 4 | 99.95 | 0.3 | ||
| 3 | 99.99 | 0.25 | ||
| 2 | 99.999 | 0.22 | ||
| KRN219 | 15 | 99 | 0.7 | 1200*600*1900 |
| 12 | 99.5 | 0.64 | ||
| 10 | 99.9 | 0.64 | ||
| 8 | 99.95 | 0.6 | ||
| 5 | 99.99 | 0.42 | ||
| 4 | 99.999 | 0.43 | ||
| KRN300.01 | 25 | 99 | 1.17 | 1600*800*1700 |
| 22 | 99.5 | 1.17 | ||
| 20 | 99.9 | 1.25 | ||
| 16 | 99.95 | 1.2 | ||
| 10 | 99.99 | 0.83 | ||
| 6 | 99.999 | 0.65 | ||
| KRN300.02 | 40 | 99 | 1.87 | 1600*800*2200 |
| 33 | 99.5 | 1.76 | ||
| 25 | 99.9 | 1.58 | ||
| 20 | 99.95 | 1.5 | ||
| 15 | 99.99 | 1.25 | ||
| 10 | 99.999 | 1.09 | ||
| KRN400.01 | 50 | 99 | 2.4 | 2000*900*1800 |
| 45 | 99.5 | 2.4 | ||
| 40 | 99.9 | 2.4 | ||
| 30 | 99.95 | 2.25 | ||
| 20 | 99.99 | 1.67 | ||
| 15 | 99.999 | 1.63 | ||
| KRN400.02 | 80 | 99 | 3.73 | 2000*900*2300 |
| 70 | 99.5 | 3.73 | ||
| 60 | 99.9 | 3.8 | ||
| 50 | 99.95 | 3.75 | ||
| 30 | 99.99 | 2.5 | ||
| 20 | 99.999 | 2.17 | ||
| KRN500.01 | 100 | 99 | 4.67 | 2400*1000*2250 |
| 90 | 99.5 | 4.8 | ||
| 70 | 99.9 | 4.44 | ||
| 55 | 99.95 | 4.13 | ||
| 40 | 99.99 | 3.33 | ||
| 30 | 99.999 | 3.25 | ||
| KRN500.02 | 132 | 99 | 6.2 | 2400*1000*2400 |
| 110 | 99.5 | 5.9 | ||
| 90 | 99.9 | 5.7 | ||
| 70 | 99.95 | 5.3 | ||
| 50 | 99.99 | 4.2 | ||
| 40 | 99.999 | 4.3 | ||
| KRN600.01 | 150 | 99 | 7 | 3100*1200*2400 |
| 130 | 99.5 | 6.9 | ||
| 110 | 99.9 | 6.9 | ||
| 90 | 99.95 | 6.8 | ||
| 60 | 99.99 | 5 | ||
| 50 | 99.999 | 5.4 | ||
| KRN600.02 | 180 | 99 | 8.4 | 3100*1200*2400 |
| 150 | 99.5 | 8 | ||
| 130 | 99.9 | 8.2 | ||
| 110 | 99.95 | 8.2 | ||
| 80 | 99.99 | 6.7 | ||
| 60 | 99.999 | 6.5 | ||
| KRN700.01 | 250 | 99 | 11.7 | 3200*1400*2650 |
| 220 | 99.5 | 11.7 | ||
| 190 | 99.9 | 12 | ||
| 160 | 99.95 | 12 | ||
| 100 | 99.99 | 8.33 | ||
| 80 | 99.999 | 8.67 | ||
| KRN700.02 | 300 | 99 | 14 | 3200*1400*2800 |
| 260 | 99.5 | 13.8 | ||
| 220 | 99.9 | 13.9 | ||
| 180 | 99.95 | 13.5 | ||
| 120 | 99.99 | 10 | ||
| 100 | 99.999 | 10.8 | ||
| KRN800.01 | 350 | 99 | 16.33 | 3300*1600*2650 |
| 300 | 99.5 | 16 | ||
| 250 | 99.9 | 15.8 | ||
| 210 | 99.95 | 15.8 | ||
| 150 | 99.99 | 12.5 | ||
| 120 | 99.999 | 13 | ||
| KRN800.02 | 400 | 99 | 18.6 | 3300*1600*3000 |
| 360 | 99.5 | 19.2 | ||
| 300 | 99.9 | 19 | ||
| 250 | 99.95 | 18.75 | ||
| 180 | 99.99 | 15 | ||
| 140 | 99.999 | 15.2 | ||
| KRN900 | 500 | 99 | 23.3 | 4600*1900*3050 |
| 400 | 99.5 | 21.3 | ||
| 360 | 99.9 | 22.8 | ||
| 300 | 99.95 | 22.5 | ||
| 200 | 99.99 | 16.67 | ||
| 160 | 99.999 | 17.33 | ||
| WN1000.01 | 600 | 99 | 28 | 4600*2000*3050 |
| 500 | 99.5 | 26.7 | ||
| 420 | 99.9 | 26.6 | ||
| 350 | 99.95 | 26.25 | ||
| 250 | 99.99 | 20.83 | ||
| 200 | 99.999 | 21.7 | ||
| KRN1000.02 | 720 | 99 | 33.6 | 4600*2000*3350 |
| 600 | 99.5 | 32 | ||
| 500 | 99.9 | 31.6 | ||
| 420 | 99.95 | 31.5 | ||
| 300 | 99.99 | 25 | ||
| 250 | 99.999 | 27 | ||
| KRN1100 | 880 | 99 | 41 | 4800*2200*3350 |
| 720 | 99.5 | 38.4 | ||
| 600 | 99.9 | 38 | ||
| 500 | 99.95 | 37.5 | ||
| 350 | 99.99 | 29.2 | ||
| 300 | 99.999 | 32.5 | ||
| KRN1200 | 1000 | 99 | 50 | 5000*2200*3460 |
| 860 | 99.5 | 45.8 | ||
| 720 | 99.9 | 45.6 | ||
| 600 | 99.95 | 45 | ||
| 400 | 99.99 | 40 | ||
| 350 | 99.999 | 43.8 | ||
| KRN1300 | 1200 | 99 | 56 | 5200*2200*3650 |
| 1000 | 99.5 | 53.3 | ||
| 860 | 99.9 | 54.5 | ||
| 660 | 99.95 | 49.5 | ||
| 450 | 99.99 | 37.5 | ||
| 400 | 99.999 | 43.3 | ||
| KRN1400 | 1400 | 99 | 65 | 5400*2200*3750 |
| 1200 | 99.5 | 64 | ||
| 1000 | 99.9 | 63.3 | ||
| 800 | 99.95 | 60 | ||
| 500 | 99.99 | 41.7 | ||
| 450 | 99.999 | 48.75 | ||
| KRN1500.01 | 1500 | 99 | 70 | 5600*2200*3850 |
| 1300 | 99.5 | 69 | ||
| 1100 | 99.9 | 69 | ||
| 900 | 99.95 | 67.5 | ||
| 600 | 99.99 | 50 | ||
| 500 | 99.999 | 54 | ||
| KRN1500.02 | 2000 | 99 | 93.3 | 5600*2200*4500 |
| 1700 | 99.5 | 90 | ||
| 1400 | 99.9 | 88 | ||
| 1100 | 99.95 | 82.5 | ||
| 700 | 99.99 | 58.3 | ||
| 550 | 99.999 | 59.6 |
Featured Function
Online monitoring of oxygen purity, pressure, flow rate and dew point.
Unqualified oxygen sound and light alarm, long time alarm automatic stop, unqualified automatic oxygen emptying.
Air dryer and air filters automatic drainer discharge.
Automatic warning of spare parts replacement.
Remote control / fully automatic
Molecular sieve automatic compaction
Pneumatic valve switching by programmable controller automatic control
The IPC, DCS, the specific configuration of other specific programs
Factory Certificates
FAQ
Q: Are you a factory or a trading company?
A:We are a factory over 20 years industrial experience.
Q: Do you offer OEM service?
A: Yes, we can customize it as your request.
Q: What is your lead time?
A: About 60~90 days after receiving deposit.
Q: What certificates do you have?
A: We have ASME, CE, ISO9001-2015, ISO13485 for medical oxygen generator. And we can apply for specific certificate for different country such as SONCAP for Nigeria, SASO for Saudi Arabia, etc
Q: What about the warranty?
A: Beyond warranty period(For 12-Months against any manufacturing defect from the date equipment acceptance after commissioning or 18-months from the time of the delivery whichever comes first),supplier will provide spare parts, accessories, easily damaged parts via preferential price.
Q:What service do you offer?
A: Pre-sales service, in-sales service, after-sales service. If you become our local distributor, we can introduce end-customers to purchase from you.
Q:Which port is near to you?
A: Qingdao port or Tianjin port. And we can arrange to deliver Guangzhou, Shanghai, Urumqi, or other Chinese cities, too.
Q:Could you offer Origin Certification.
A: we can do as your request.
