CE Certified Psa Medical Oxygen Plant With 20feet Container Option
Dettagli:
| Luogo di origine: | Cina |
| Marca: | KERONG GAS |
| Certificazione: | ISO13485，ISO9001 |
| Numero di modello: | C.R.O. |
Termini di pagamento e spedizione:
| Quantità di ordine minimo: | 1 pz |
|---|---|
| Prezzo: | negotiable |
| Imballaggi particolari: | scatola di legno |
| Tempi di consegna: | 8 settimane |
| Termini di pagamento: | L/C, T/T, Western Union, MoneyGram |
| Capacità di alimentazione: | 1000pcs all'anno |
|
Informazioni dettagliate |
|||
| Nome: | Pianta medica dell'ossigeno di PSA | Purezza: | 90%~99,5% |
|---|---|---|---|
| Contenuto di olio: | senza olio | Materiale: | Acciaio inossidabile o acciaio al carbonio |
| Capacità: | 5Nm3/h~60Nm3/h | Pressione: | Regolabile |
| Evidenziare: | CE certified PSA medical oxygen plant,PSA medical oxygen generator with container,20ft container medical oxygen generator |
||
Descrizione di prodotto

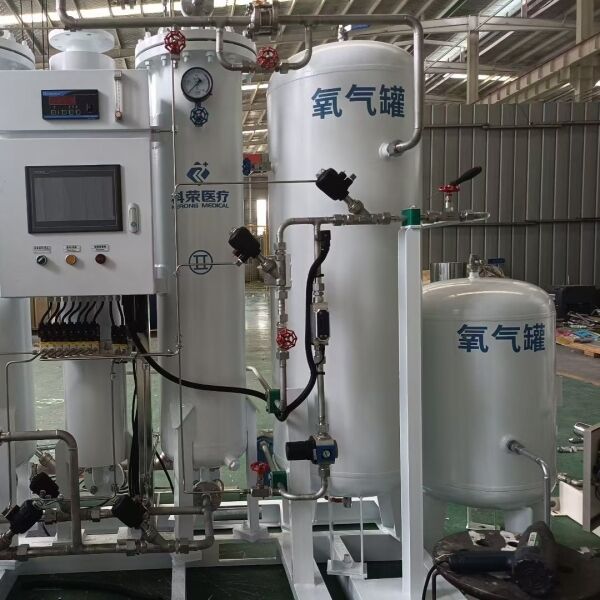

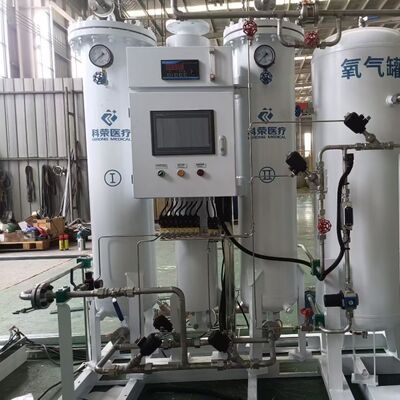

CE Certified Psa Medical Oxygen Plant With 20feet Container Option
Product description
Our CE Certified PSA Medical Oxygen Plant with 20ft Container Option is a complete, turnkey solution for hospitals and healthcare facilities requiring a reliable on-site oxygen supply. Utilizing advanced Pressure Swing Adsorption (PSA) technology, the system produces medical-grade oxygen with purity of 93% ±3% and stable flow rates for continuous patient care. The 20-foot containerized design integrates all essential components into a compact, weatherproof unit, enabling rapid deployment and easy transportation. Fully compliant with CE certification requirements, the plant features automatic operation, real-time oxygen monitoring, energy-efficient performance, and low maintenance, providing a safe, cost-effective alternative to cylinders and liquid oxygen supply.
Technical Parameters
● Purity——93%±3% or with the oxygen purifier can get maximum 99.5%
● Pressure——0.3~0.6 Mpa or with the booster to get 30Mpa or more
● Atmospheric dew point——≤－40℃ or more
| Item | Model | Oxygen flow rate(Nm3/hr) | Purity(%) | Air need(m3/min) |
| 1 | KRO-1-95 | 1 | 95%±1% | 0.25 |
| 2 | KRO-2-95 | 2 | 95%±1% | 0.50 |
| 3 | KRO-3-95 | 3 | 95%±1% | 0.75 |
| 4 | KRO-5-95 | 5 | 95%±1% | 1.25 |
| 5 | KRO-10-95 | 10 | 95%±1% | 2.50 |
| 6 | KRO-15-95 | 15 | 95%±1% | 3.75 |
| 7 | KRO-20-95 | 20 | 95%±1% | 5.00 |
| 8 | KRO-25-95 | 25 | 95%±1% | 6.25 |
| 9 | KRO-30-95 | 30 | 95%±1% | 7.50 |
| 10 | KRO-35-95 | 35 | 95%±1% | 8.75 |
| 11 | KRO-45-95 | 45 | 95%±1% | 11.25 |
| 12 | KRO-50-95 | 50 | 95%±1% | 12.50 |
| 13 | KRO-60-95 | 60 | 95%±1% | 15.00 |
Featured Function
Online monitoring of oxygen purity, pressure, flow rate and dew point.
Unqualified oxygen sound and light alarm, long time alarm automatic stop, unqualified automatic oxygen emptying.
Air dryer and air filters automatic drainer discharge.
Automatic warning of spare parts replacement.
Remote control / fully automatic
Molecular sieve automatic compaction
Pneumatic valve switching by programmable controller automatic control
The IPC, DCS, the specific configuration of other specific programs
Factory Certificates
FAQ
Q: Are you a factory or a trading company?
A:We are a factory over 20 years industrial experience.
Q: Do you offer OEM service?
A: Yes, we can customize it as your request.
Q: What is your lead time?
A: About 60~90 days after receiving deposit.
Q: What certificates do you have?
A: We have ASME, CE, ISO9001-2015, ISO13485 for medical oxygen generator. And we can apply for specific certificate for different country such as SONCAP for Nigeria, SASO for Saudi Arabia, etc
Q: What about the warranty?
A: Beyond warranty period(For 12-Months against any manufacturing defect from the date equipment acceptance after commissioning or 18-months from the time of the delivery whichever comes first),supplier will provide spare parts, accessories, easily damaged parts via preferential price.
Q:What service do you offer?
A: Pre-sales service, in-sales service, after-sales service. If you become our local distributor, we can introduce end-customers to purchase from you.
Q:Which port is near to you?
A: Qingdao port or Tianjin port. And we can arrange to deliver Guangzhou, Shanghai, Urumqi, or other Chinese cities, too.
Q:Could you offer Origin Certification.
A: we can do as your request.
