Plug and Play Installation Pressure Swing Adsorption Oxygen Plant
Dettagli:
| Luogo di origine: | Cina |
| Marca: | KERONG GAS |
| Certificazione: | ISO13485，ISO9001 |
| Numero di modello: | C.R.O. |
Termini di pagamento e spedizione:
| Quantità di ordine minimo: | 1 pz |
|---|---|
| Prezzo: | negotiable |
| Imballaggi particolari: | SCATOLA IN LEGNO |
| Tempi di consegna: | 8 settimane |
| Termini di pagamento: | L/C, T/T, Western Union, MoneyGram |
| Capacità di alimentazione: | 1000pcs all'anno |
|
Informazioni dettagliate |
|||
| Nome: | Pianta dell'ossigeno di adsorbimento dell'oscillazione di pressione | Purezza: | 90%~99,5% |
|---|---|---|---|
| Contenuto di olio: | senza olio | materiale: | Acciaio inossidabile o acciaio al carbonio |
| Capacità: | 5Nm3/h~60Nm3/h | Pressione: | Regolabile |
| Evidenziare: | plug and play PSA oxygen plant,medical oxygen generator with warranty,pressure swing adsorption oxygen system |
||
Descrizione di prodotto

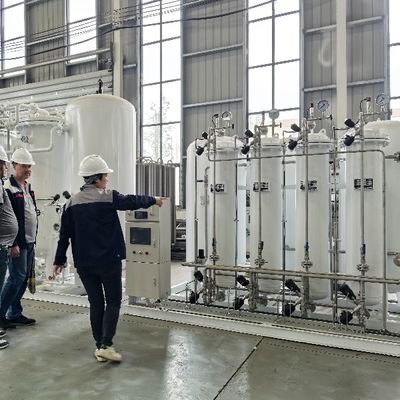

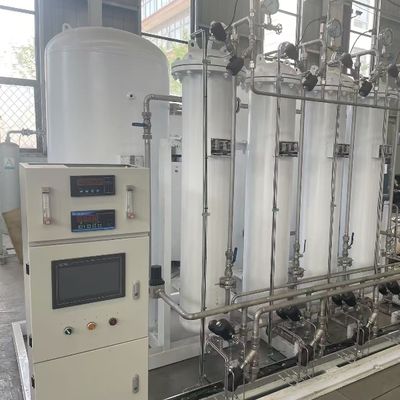

Plug and Play Installation Pressure Swing Adsorption Oxygen Plant
Product description
Our Plug and Play Installation Pressure Swing Adsorption (PSA) Oxygen Plant is designed for fast deployment and reliable on-site oxygen generation. Utilizing advanced PSA technology, the system produces oxygen with purity of 93% ±3%, delivering stable flow and pressure for medical and industrial applications. The fully integrated, pre-assembled design allows immediate operation after simple power and air connections, eliminating complex installation and commissioning. Equipped with automatic controls and real-time monitoring, it ensures safe, energy-efficient, and low-maintenance performance. Compact and skid-mounted, this PSA oxygen plant provides a cost-effective, dependable alternative to traditional oxygen cylinders or liquid oxygen supply systems.
Technical Parameters
● Purity——93%±3% or with the oxygen purifier can get maximum 99.5%
● Pressure——0.3~0.6 Mpa or with the booster to get 30Mpa or more
● Atmospheric dew point——≤－40℃ or more
| Item | Model | Oxygen flow rate(Nm3/hr) | Purity(%) | Air need(m3/min) |
| 1 | KRO-1-95 | 1 | 95%±1% | 0.25 |
| 2 | KRO-2-95 | 2 | 95%±1% | 0.50 |
| 3 | KRO-3-95 | 3 | 95%±1% | 0.75 |
| 4 | KRO-5-95 | 5 | 95%±1% | 1.25 |
| 5 | KRO-10-95 | 10 | 95%±1% | 2.50 |
| 6 | KRO-15-95 | 15 | 95%±1% | 3.75 |
| 7 | KRO-20-95 | 20 | 95%±1% | 5.00 |
| 8 | KRO-25-95 | 25 | 95%±1% | 6.25 |
| 9 | KRO-30-95 | 30 | 95%±1% | 7.50 |
| 10 | KRO-35-95 | 35 | 95%±1% | 8.75 |
| 11 | KRO-45-95 | 45 | 95%±1% | 11.25 |
| 12 | KRO-50-95 | 50 | 95%±1% | 12.50 |
| 13 | KRO-60-95 | 60 | 95%±1% | 15.00 |
Featured Function
Online monitoring of oxygen purity, pressure, flow rate and dew point.
Unqualified oxygen sound and light alarm, long time alarm automatic stop, unqualified automatic oxygen emptying.
Air dryer and air filters automatic drainer discharge.
Automatic warning of spare parts replacement.
Remote control / fully automatic
Molecular sieve automatic compaction
Pneumatic valve switching by programmable controller automatic control
The IPC, DCS, the specific configuration of other specific programs
Factory Certificates
FAQ
Q: Are you a factory or a trading company?
A:We are a factory over 20 years industrial experience.
Q: Do you offer OEM service?
A: Yes, we can customize it as your request.
Q: What is your lead time?
A: About 60~90 days after receiving deposit.
Q: What certificates do you have?
A: We have ASME, CE, ISO9001-2015, ISO13485 for medical oxygen generator. And we can apply for specific certificate for different country such as SONCAP for Nigeria, SASO for Saudi Arabia, etc
Q: What about the warranty?
A: Beyond warranty period(For 12-Months against any manufacturing defect from the date equipment acceptance after commissioning or 18-months from the time of the delivery whichever comes first),supplier will provide spare parts, accessories, easily damaged parts via preferential price.
Q:What service do you offer?
A: Pre-sales service, in-sales service, after-sales service. If you become our local distributor, we can introduce end-customers to purchase from you.
Q:Which port is near to you?
A: Qingdao port or Tianjin port. And we can arrange to deliver Guangzhou, Shanghai, Urumqi, or other Chinese cities, too.
Q:Could you offer Origin Certification.
A: we can do as your request.
