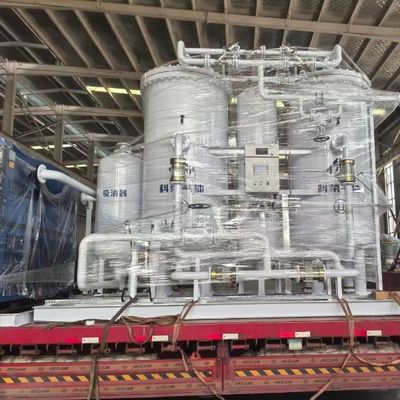

Auto onsite Oil free air compressor Pressure Swing Adsorption Oxygen Plant
Dettagli:
| Luogo di origine: | Cina |
| Marca: | KERONG GAS |
| Certificazione: | ISO13485，ISO9001 |
| Numero di modello: | C.R.O. |
Termini di pagamento e spedizione:
| Quantità di ordine minimo: | 1 pz |
|---|---|
| Prezzo: | negotiable |
| Imballaggi particolari: | SCATOLA IN LEGNO |
| Tempi di consegna: | 8 settimane |
| Termini di pagamento: | L/C, T/T, Western Union, MoneyGram |
| Capacità di alimentazione: | 1000pcs all'anno |
|
Informazioni dettagliate |
|||
| Nome: | Pianta dell'ossigeno di adsorbimento dell'oscillazione di pressione | Purezza: | 90%~99,5% |
|---|---|---|---|
| Contenuto di olio: | senza olio | materiale: | Acciaio inossidabile o acciaio al carbonio |
| Capacità: | 5Nm3/h~60Nm3/h | Pressione: | Regolabile |
| Evidenziare: | oil-free air compressor oxygen plant,PSA medical oxygen generator,pressure swing adsorption oxygen system |
||
Descrizione di prodotto

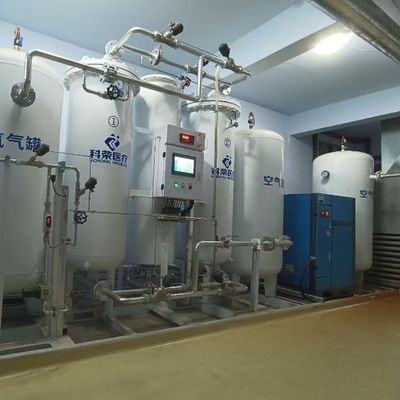

Auto onsite Oil free air compressor Pressure Swing Adsorption Oxygen Plant
Product description
Our Auto Onsite Oil-Free Air Compressor Pressure Swing Adsorption (PSA) Oxygen Plant is a complete, integrated solution for reliable on-site oxygen generation. Equipped with a high-performance oil-free air compressor, the system eliminates hydrocarbon contamination risks, ensuring clean and safe oxygen output with purity of 93% ±3%. Utilizing advanced PSA technology, it delivers stable flow and pressure for medical and industrial applications. The fully automatic control system enables unattended operation with real-time monitoring and safety protection. Designed for energy efficiency, compact installation, and low maintenance, this integrated oxygen plant reduces operational costs while providing a dependable alternative to cylinders or liquid oxygen supply.
Technical Parameters
● Purity——93%±3% or with the oxygen purifier can get maximum 99.5%
● Pressure——0.3~0.6 Mpa or with the booster to get 30Mpa or more
● Atmospheric dew point——≤－40℃ or more
| Item | Model | Oxygen flow rate(Nm3/hr) | Purity(%) | Air need(m3/min) |
| 1 | KRO-1-95 | 1 | 95%±1% | 0.25 |
| 2 | KRO-2-95 | 2 | 95%±1% | 0.50 |
| 3 | KRO-3-95 | 3 | 95%±1% | 0.75 |
| 4 | KRO-5-95 | 5 | 95%±1% | 1.25 |
| 5 | KRO-10-95 | 10 | 95%±1% | 2.50 |
| 6 | KRO-15-95 | 15 | 95%±1% | 3.75 |
| 7 | KRO-20-95 | 20 | 95%±1% | 5.00 |
| 8 | KRO-25-95 | 25 | 95%±1% | 6.25 |
| 9 | KRO-30-95 | 30 | 95%±1% | 7.50 |
| 10 | KRO-35-95 | 35 | 95%±1% | 8.75 |
| 11 | KRO-45-95 | 45 | 95%±1% | 11.25 |
| 12 | KRO-50-95 | 50 | 95%±1% | 12.50 |
| 13 | KRO-60-95 | 60 | 95%±1% | 15.00 |
Featured Function
Online monitoring of oxygen purity, pressure, flow rate and dew point.
Unqualified oxygen sound and light alarm, long time alarm automatic stop, unqualified automatic oxygen emptying.
Air dryer and air filters automatic drainer discharge.
Automatic warning of spare parts replacement.
Remote control / fully automatic
Molecular sieve automatic compaction
Pneumatic valve switching by programmable controller automatic control
The IPC, DCS, the specific configuration of other specific programs
