Zero Contamination Nitrogen Gas Air Separation Plant For Hard Metal
Dettagli:
| Luogo di origine: | Cina |
| Marca: | KERONG GAS |
| Certificazione: | ISO9001, CE, ASME |
| Numero di modello: | Krn |
Termini di pagamento e spedizione:
| Quantità di ordine minimo: | 1 PC |
|---|---|
| Prezzo: | negotiable |
| Imballaggi particolari: | Scatola di legno |
| Tempi di consegna: | 8 settimane |
| Termini di pagamento: | L/C, T/T, Western Union, MoneyGram |
| Capacità di alimentazione: | 1000pcs all'anno |
|
Informazioni dettagliate |
|||
| Nome: | Impianto di separazione aria gas azoto | Purezza: | 90%~ 99,9999% |
|---|---|---|---|
| Punto di rugiada: | -45 ℃ o più | Materiale: | Acciaio inossidabile o acciaio al carbonio |
| Capacità: | 5nm3/hr ~ 5500nm3/hr | Pressione: | Regolabile |
| Evidenziare: | PSA nitrogen gas generator for hard metal,zero contamination nitrogen separation plant,industrial nitrogen gas generator with warranty |
||
Descrizione di prodotto
| Attribute | Value |
|---|---|
| Name | Nitrogen Gas Air Separation Plant |
| Purity | 90%~99.9999% |
| Dew point | -45℃ or more |
| Material | Stainless steel or carbon steel |
| Capacity | 5Nm3/hr~5500Nm3/hr |
| Pressure | Adjustable |

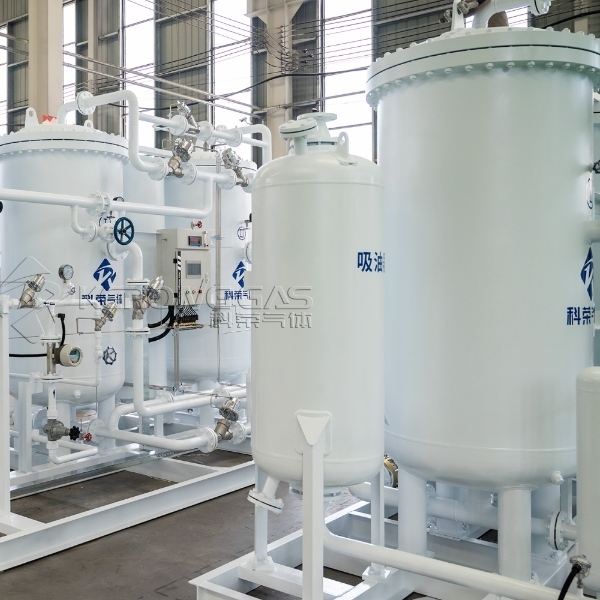

Our Zero Contamination Nitrogen Gas Air Separation Plant delivers ultra-high-purity nitrogen (up to 99.99%) for hard metal production and processing, ensuring oxidation-free, contamination-free environments. Utilizing advanced Pressure Swing Adsorption (PSA) or membrane separation technology, it separates nitrogen from compressed air to provide a continuous, reliable on-site supply. Designed with contamination-free materials and skid-mounted construction, it maintains nitrogen integrity throughout the process. Fully automated with intelligent controls, the system ensures stable pressure, consistent purity, and minimal maintenance. Ideal for hard metal industries, this plant guarantees safe, cost-effective, and high-quality nitrogen supply, enhancing material performance and operational efficiency.
| Model | Nitrogen flow rate(Nm3/hr) | Purity(%) | Air need(m3/min) | Net dimensions(mm) |
|---|---|---|---|---|
| KRN159 | 7 | 99 | 0.33 | 1200*600*1900 |
| 6 | 99.5 | 0.32 | ||
| KRN219 | 15 | 99 | 0.7 | 1200*600*1900 |
- Online monitoring of oxygen purity, pressure, flow rate and dew point.
- Unqualified oxygen sound and light alarm, long time alarm automatic stop, unqualified automatic oxygen emptying.
- Air dryer and air filters automatic drainer discharge.
- Automatic warning of spare parts replacement.
- Remote control / fully automatic
- Molecular sieve automatic compaction
- Pneumatic valve switching by programmable controller automatic control
- The IPC, DCS, the specific configuration of other specific programs
